SPECIFICATIONS

Brand Name: KALADA

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Item Type: Atmosphere lamp

Item Weight: 0.6

Material: Acrylic

Model Name: 18 In 1 Car Ambient Lights

Origin: Mainland China

Special Features: Button /APP Dual control,dual zone

Voltage: 12V





Dual Zone:The colors of the footlights and light strips can be set in different modes

Features

Monochrome Mode/Breathe Mode/Gradient Mode/Cycle Mode/Strobe Mode/Music rhythm Mode/Flow Mode/Running water Mode/Mobile phone APP control

Voltage: 5V - 14 V( wide voltage ,work with 5v to 14v,compatible with all 12v car maker)

Operation Method

(1) Double button mode

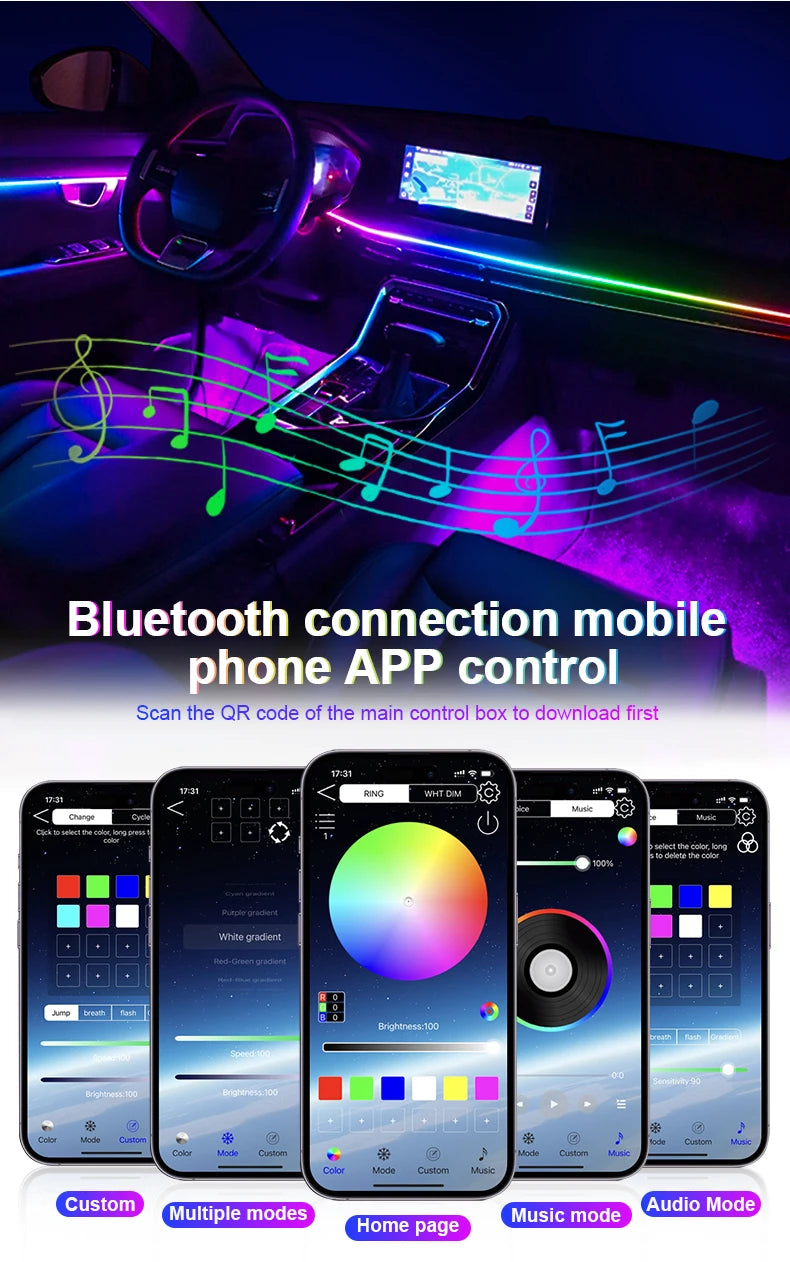

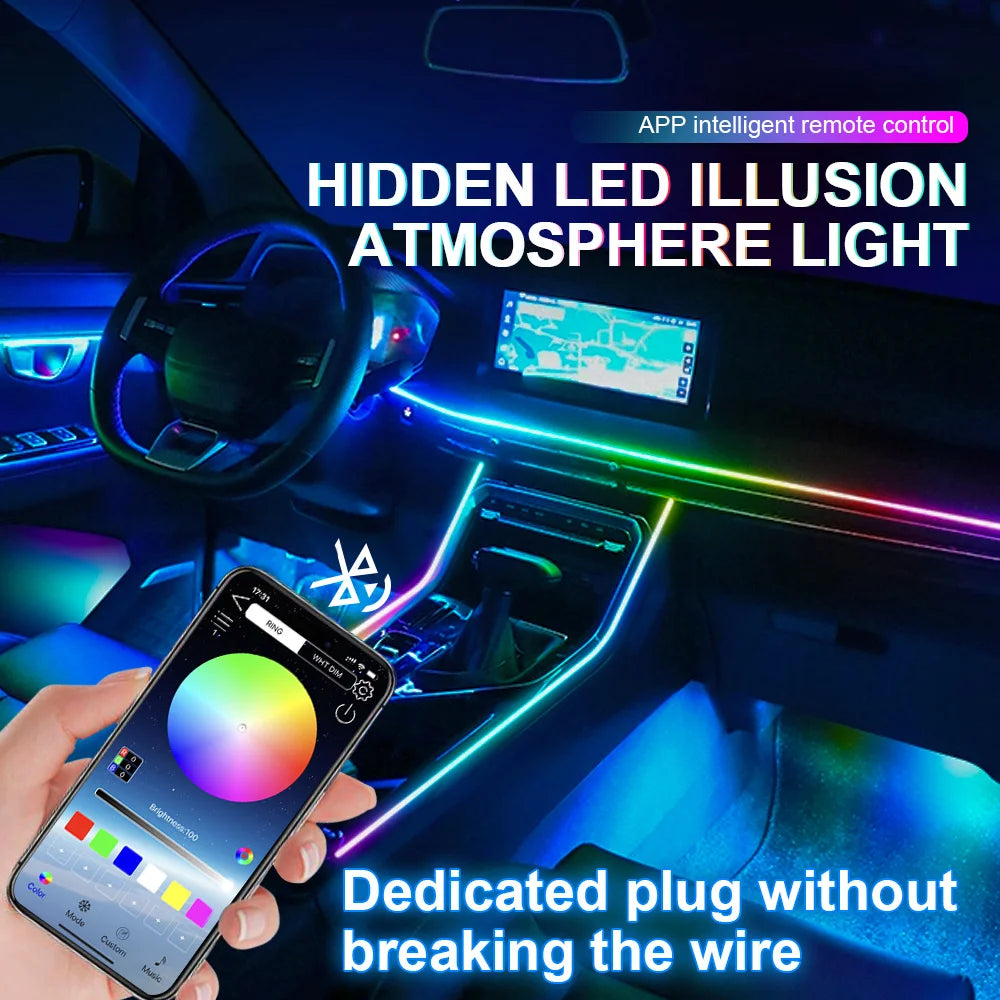

(2) Bluetooth connection to mobile phone APP control

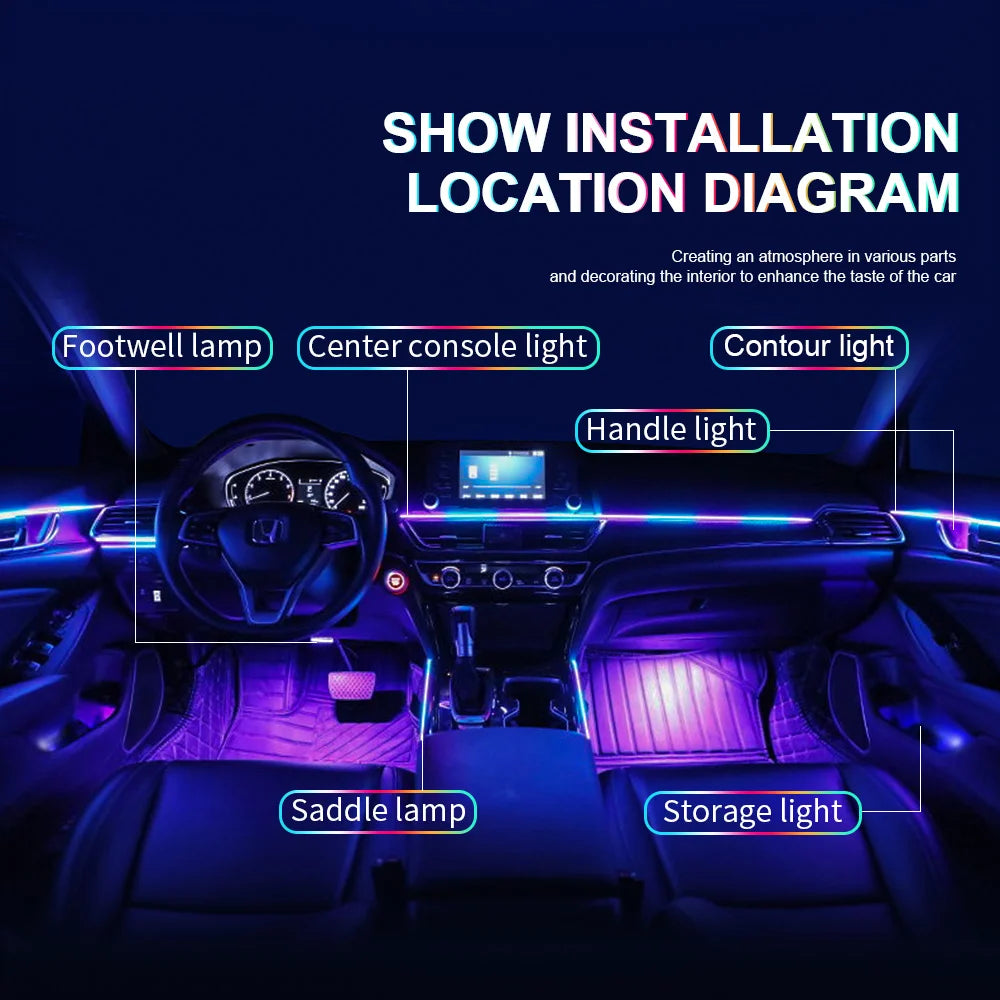

Dual zone mode

1) In the single-zone mode, all light can be same color , meanwhile the dual-zone function is added, and the light bar and footlight/door light/storage light provide two different colors at the same time.

2) You can turn off one of the areas (you can turn off the RGB area alone (footlights, door lights, storage lights), and turn off the Symphony zone alone, that is, turn off the light bar alone)

3) Has start up animation, It can be turned off through the App settings.

4) Can choose a favorite color for the welcome light, which memory function.

5) Can change the RGB area or the Symphony area mode, such as breathe Mode, jumping, etc.

Package include

All types of products include 1* main controller module and 4 * sub-controller modules

1) 213 colors (Colorful Symphony rainbow)

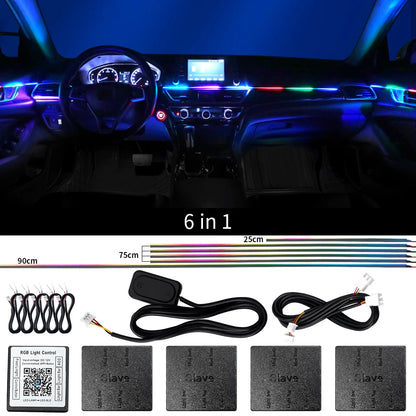

-Item Type : 6 in 1 ( 6 * LED strip(90cm * 1 + 75cm * 4 + 20cm * 1)

- Item Type : 10 in 1 ( 6 * LED strip(90cm * 1 + 75cm * 4 + 20cm * 1 + 4 *Footlight )

- Item Type : 14 in 1 ( 6 * LED strip(90cm * 1 + 75cm * 4 + 20cm * 1 + 4 * Footlight + 4 * Door bowl lights )

-Item Type : 18 in 1 ( 6 * LED strip(90cm * 1 + 75cm * 4 + 20cm * 1 + 4 * Footlight + 4 * Door bowl lights + 4 * Storage lights)

-Item Type : 22 in 1 ( 6 * LED strip(90cm * 1 + 75cm * 4 + 20cm * 1 + 4 * Footlight + 4 * Door bowl lights + 4 * Storage lights + 4 * Loudspeaker ambient light)

2) 64 colors(RGB not rainbow)

-Item Type : 6 in 1 ( 5 * LED strip(75cm *4 + 1* 110cm double plug )

- Item Type : 10 in 1 ( 5 * LED strip(75cm *4 + 1* 110cm double plug + 4 *Footlight )

- Item Type : 14 in 1 ( 5 * LED strip(75cm *4 + 1* 110cm double plug + 4 * Footlight + 4 * Door bowl lights )

-Item Type : 18 in 1 ( 5 * LED strip(75cm *4 + 1* 110cm double plug + 4 * Footlight + 4 * Door bowl lights + 4 * Storage lights)

-Item Type : 22 in 1 ( 5 * LED strip(75cm *4 + 1* 110cm double plug + 4 * Footlight + 4 * Door bowl lights + 4 * Storage lights + 4 * Loudspeaker ambient light)

Installation:

1. Installation: Download the application by the QR code on the main control box first, control light mode via Bluetooth connection. This product include 1 main control box ,4 sub control box. Each controller has a power cable, the main controller is connected to a 5-12V power supply and the sub controller also needs to be connected to a 5- 12v power supply such as a door power supply. （Negative polar and positive polar）

2. Main controller can work individually, Sub controller can't work if no main controller or main no power on. so if you want to test Sub controller, you have to keep Main controller 12V powered on, then 12V supply to Sub controller to test.

3. Before installation, please check all items quantities and test completed kit with 12V supply (We suggest a current 5A -15A)and install it on the car after confirming that the all products works normally.
